Items
|
Specifications
|
|---|---|
|
Material
|
High Temperature resistance EPDM pipe + Steel Pipe
|
|

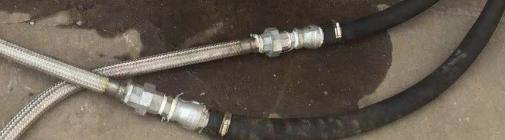

Input/Output Rubber Pipe
|
Material: High Temperature resistance EPDM pipe; Outside diameter: 35mm, Inner diameter: 25mm Thickness: 5mm; Length: 130CM/160CM |
|
Input/Output Rubber Pipe
|
Material: Galvanized iron pipe Outside diameter: 26mm. Inner diameter: 21mm. Thickness: 2.5mm; Length: 130CM/160CM |
|

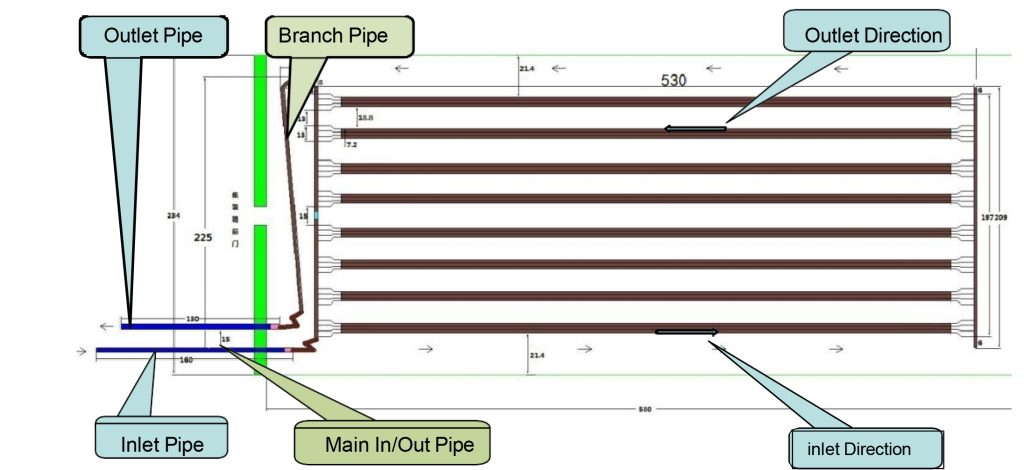

Branch Rubber Pipe
|
Material: High Temperature resistance EPDM pipe; Outside diameter: 10mm. Inner diameter: 6mm. Thickness: 2mm; Length: 540CM |
|
Tolerable Pressure
|
< 0.4Mpa with Steam
|
|
Tolerable Temperature
|
150°C
|
|
Layout Size
|
5.6M * 2.15M
|
|
Weight
|
29 Kgs
|
|
Package Dimension
|
2.22m * 0.32m * 0.15m
|
|
Items
|
Specifications
|
|---|---|
|
Material
|
High Temperature Resistance EPDM Pipe + Steel Pipe
|
|
Outlet Pipe / Inlet Pipe Inside diameter; Outside diameter |
25 mm ; 35 mm |
|
Steel pipe Inside diameter; Outside diameter |
21 mm ; 26 mm |
|

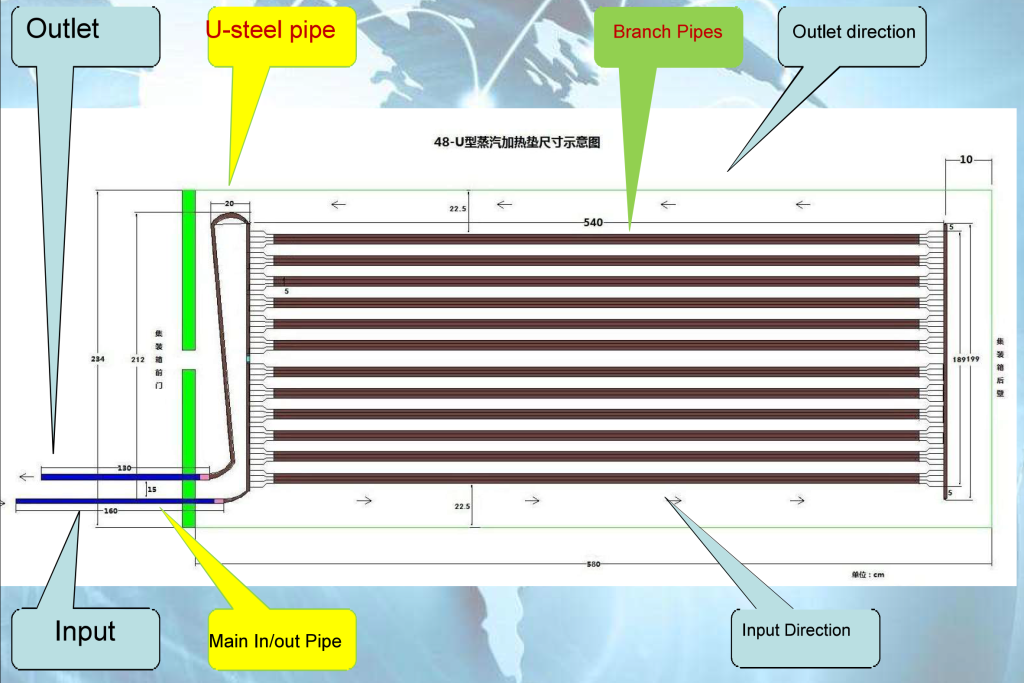

Branch Rubber Pipe Inside diameter ; Outside diameter |
7 mm ; 10 mm |
|
Working Pressure
|
<0.16 Mpa
|
|
Temperature Range
|
< 130°C
|
|
Heat Source
|
Steam
|
|
Layout Dimension
|
5.6m * 2.25m
|
|
Weight
|
32 Kg ± 1.5 Kg
|
|
Outer Packing Dimension
|
2.31m * 0.48m * 0.29m
|
|
Description
|
Data Characteristics
|
|---|---|
|
Material
|
EPDM + caoutchouc
|
|
Inside diameter
|
8 mm
|
|
Outside diameter
|
15 mm
|
|
Outlet Hose
|
(reinforced rubber) 34 mm
|
|
Inlet Hose
|
34 mm
|
|
Working Pressure
|
1.5 to 2 bar (max. 30 psi)
|
|
Temperature Range
|
< 120°C
|
|
Heat Source
|
Steam / Hot Water
|
|
Layout Dimension
|
7.00 ft (Width) x 17.55 ft (Length)
|
|
Heating Time
|
8Hrs - 12Hrs
|
|
Weight
|
22 Kgs
|
|

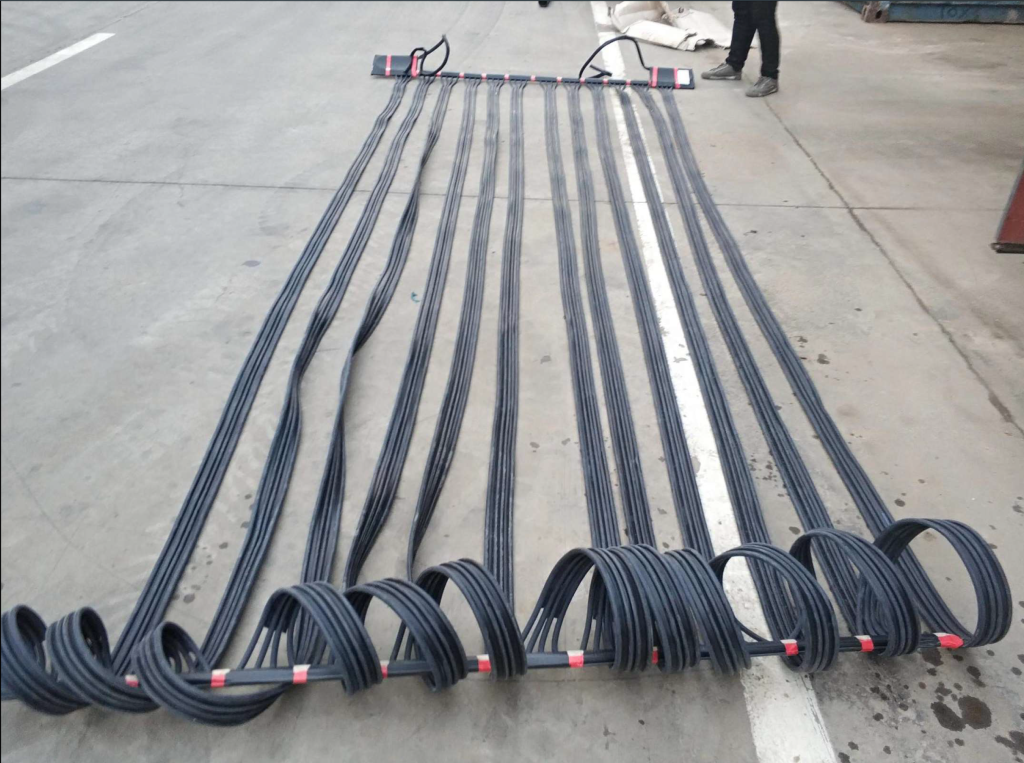

Total length of hose
|
17.55 ft x 19 pcs hose = 333.45 ft
|
